DAITO NA SERIES BAND SAW

Designed for pack cutting.

THE ULTIMATE PACK / BUNDLE SAW

Daito NA Series Band Saws: Pack Cutting done right.

With a host of features and design innovations that makes for the most efficient pack cutting available.

  • Yoke type vertical clamps.
  • Front shuttle vice.
  • Closely spaced table rollers
  • Fixed side vice movement.
  • Moveable controller.
  • Self-Diagnostics.
  • Chip conveyor.
  • Amplifying valve.
  • Blade deviation detector.

Get in touch, we would like to talk to you.

FEATURES

Designed to last 25+ years.

YOKE TYPE VERTICAL CLAMPS

Three yoke type vertical clamps are installed for bundled material; in addition to the index / main / front vices.

ACTUATING FIXED SIDE VICE

The fixed side jaws of the index / main / front vices open slightly to allow the work with positioning/removing work piece to index without obstruction.

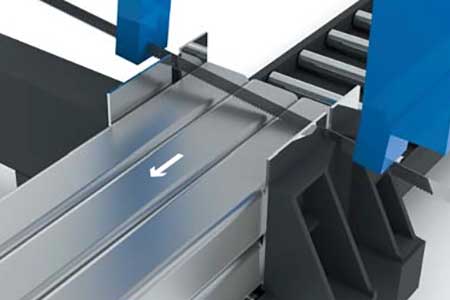

FRONT SHUTTLE VICE

For easy handling, the front shuttle vise has a 250mm stroke that helps with positioning/removing work pieces.

AMPLIFYING VALVE

The amplifying valve accurately controls the feed rate of the saw blade by amplifying any changes in cutting resistance resulting in the most efficient cut.

LONG FEED

Standard shuttle vice feed length is 800mm. Optional LF Series with long feed is 2500mm stroke per feed.

RAKER TYPE CHIP CONVEYOR

The raker type chip conveyor endlessly rakes chips out while allowing most cutting fluid to drain back into the coolant tank reservoir.

PHOTO GALLERY

TRUE PACK CUTTING SAWS ARE NOT SO EASILY AVAILABLE FROM THE SAW MANUFACTURERS

Get in touch and we will gladly get back to you to discuss the reasons why!

VIDEO GALLERY

SPECIFICATIONS

  • Model
  • Max. Width
    per
  • Cutting Capacity (rectangle)
  • Cutting Capacity (round)
  • Blade Size
  • Shuttle Stoke (index vice)
  • Shuttle Stoke (front vice)
  • Max. indexable weight
  • Blade Motor
  • Machine Weight
  • NA-6670
  • 700mm (W)
    per
  • W700 x H600mm
  • 660mm
  • 54 x 6705 x 1.6mm
  • 800mm (*Opt. LF Series: 2500mm)
  • 250mm
  • 8000kgs
  • 7.5kW
  • 5100kgs
